Follow these steps to get your new Spa Sense™ unit installed!
Note: You must take every precaution to prevent water from entering the equipment bay and components.
- TURN POWER OFF TO THE SPA!
- DRAIN THE SPA!
- Remove the front and right corners as outlined in the owner’s manual.

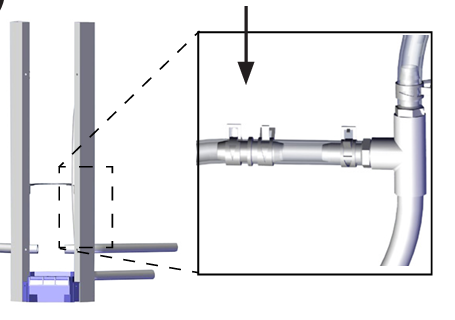

- Locate the coupling plumbed into the drain line. If one is not, there you will need to plumb

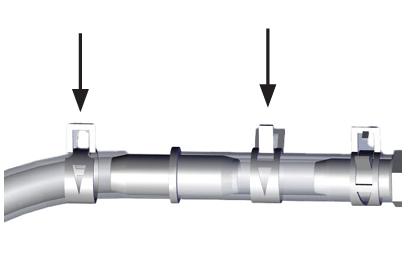

into the drain line. - Loosen the metal clamps to remove the hose from the coupler.

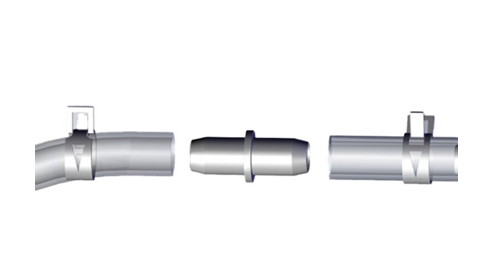

- Remove the coupler.

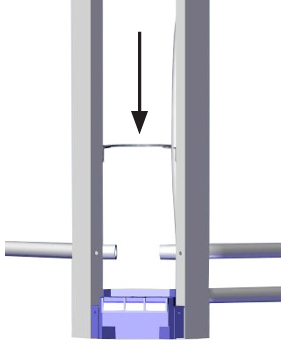

- Attach the support clip to the frame. For a metal frame, use self-tapping screws or double-sided 3M tape. For a wood frame, use wood screws. You may need to use a wooden spacer between the frame and the support clip.

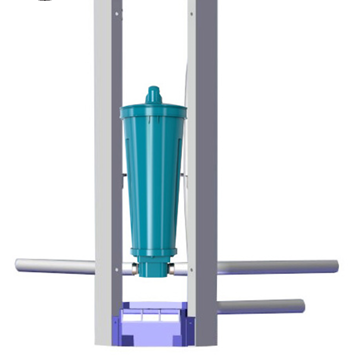

- Place the SpaSense™ unit into the clip.
- Attach the hoses to each side and tighten them with clamps provided in the kit.
